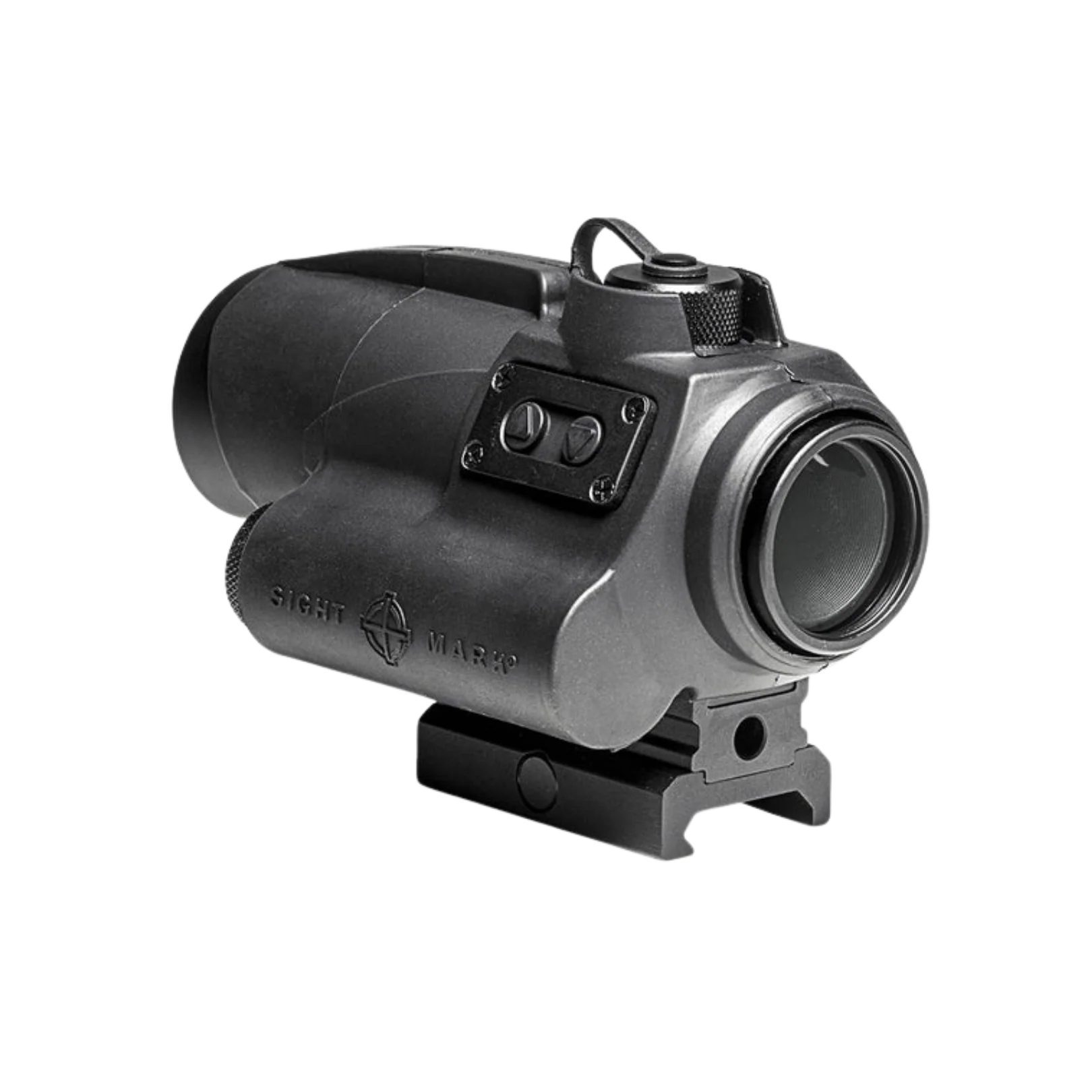

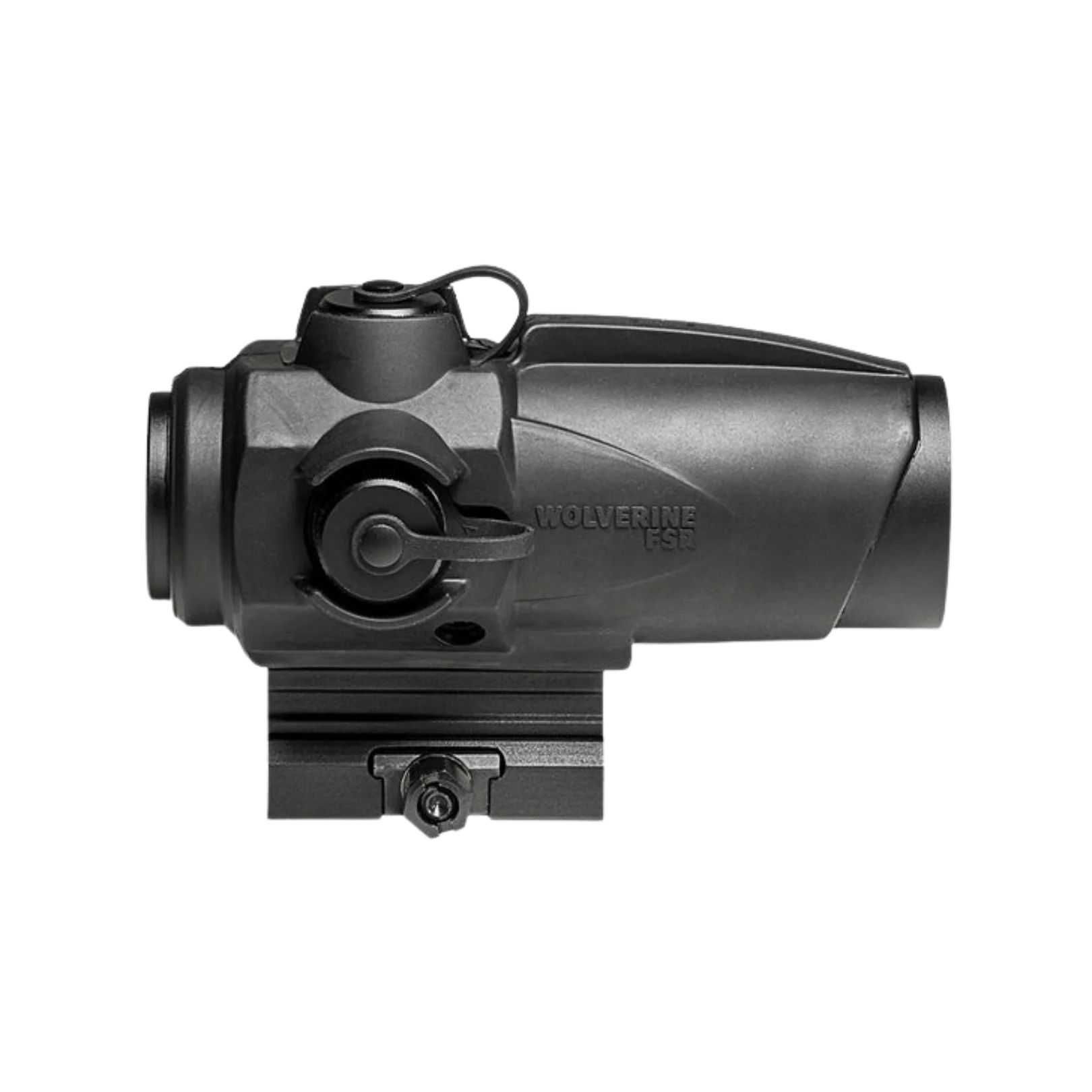

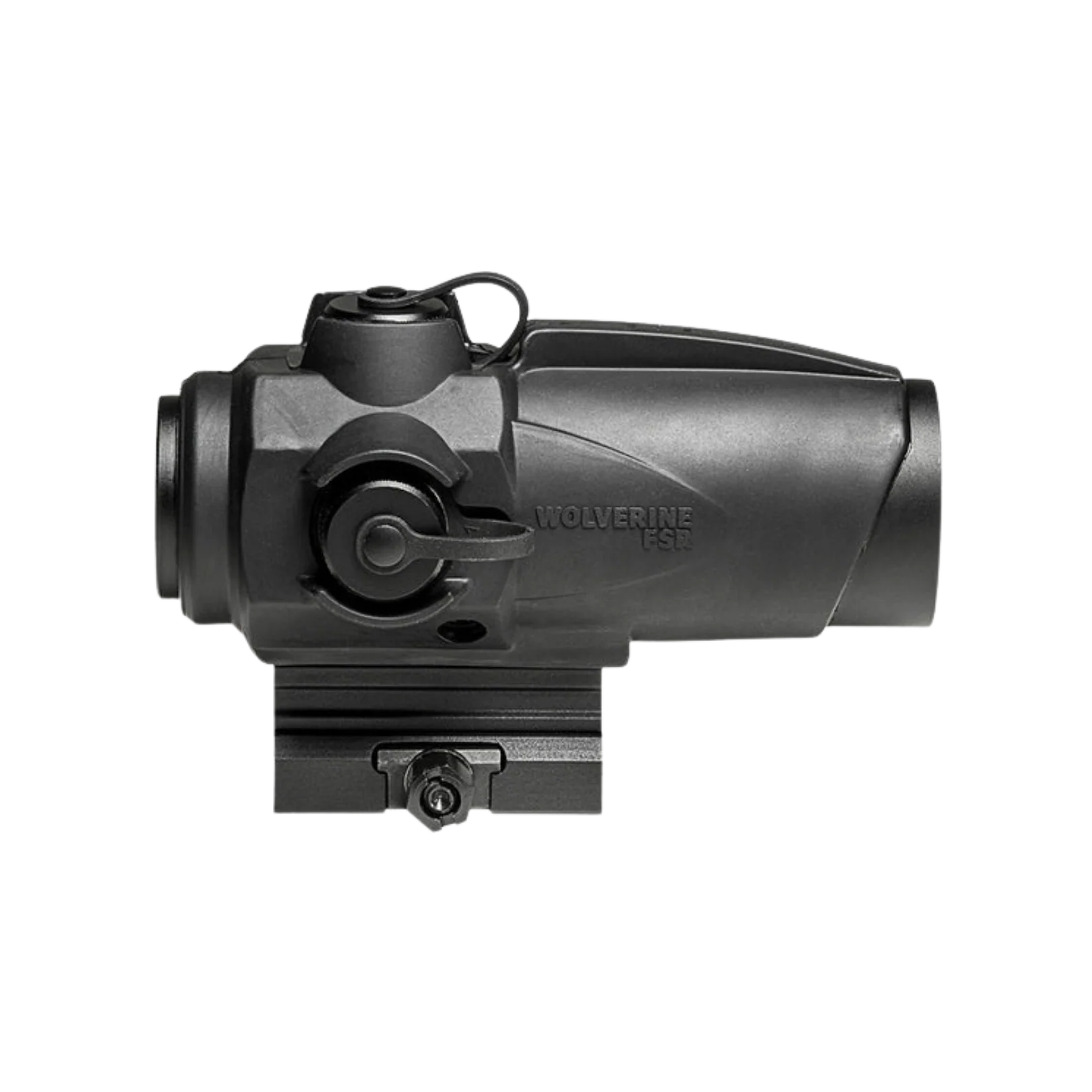

Sightmark Wolverine 1x28mm FSR Red Dot Sight
Features
- Powered by a single AA battery and very low power consumption. Over 50,000 Hours of Battery Life on Medium Power.
- Protected adjustment caps, digital switch brightness controls, and night vision compatible.
- Fog proof, nitrogen purged and scratch resistant, anti-reflective lens coating.
- Rubber armored, single piece 6061-T6 aluminum housing.
- IP67 waterproof rating, submergible to 1m/3ft with shockproof design.
- Wide range of operating temperature, -22° to 122° F
Mount Heights
The Sightmark Wolverine FSR and CSR include a picatinny mount and riser (9) for absolute co-witness. If mounting on a bolt action hunting rifle or shotgun, a low profile mount height is desired and it is recommended the co-witness riser not be used. If mounting on flat top rifles, it is recommended the riser be installed for an absolute co-witness with iron sights
Brightness controls
The Wolverine FSR and CSR offer 10 brightness settings; 8 daytime and 2 night vision modes. Settings 1 and 2 can be used with generation 1, 2, and 3 night vision devices. Settings 3 and 4 are best for low light, indoor environments while 5 - 10 are best for outdoor environments.
Windage and Elevation adjustment
The Sightmark Wolverine FSR and CRS have built- in windage and elevation adjustments (2, 3) with audible clicks. The Wolverine FSR has ½ MOA clicks meaning each click moves the point of impact ½” at 100 yards. The Wolverine CSR has MOA clicks so each click moves the point of impact 1” at 100 yards, ½” at 50 yards, and ¼” at 25 yards.
| Feature | Specification |
|---|---|
| Reticle Type | 2 MOA Dot |
| Reticle Color | Red |
| Illuminated | Yes |
| Brightness Settings | Off, NV1, NV2, 3-10 |
| Magnification | 1x |
| Window Dimension | 28 mm |
| Window Material | Glass |
| Eye Relief | Unlimited mm |
| Windage Adjustment | 120 MOA |
| Elevation Adjustment | 120 MOA |
| MOA Adjustment | 1/2 MOA |
| Finish/Color | Matte Black or Flat Dark Earth |
| Body Material | Aluminum 6061-T6 / Rubber |
| Maximum Recoil | .338 Win |
| IP Standard | IP67 (submersible to 1m / 3ft) |
| Shockproof | Yes |
| Fog Proof | Yes |
| Lens Coating | AR Red |
| Mount Type | Picatinny |
| Battery Type | AA |
| Battery Life | (High) 900 - (Low) 1,000,000 / 50,000 (setting 6) hours |
| Battery Voltage | 1.5 V |
| Operating Temp | -22 to 122°F / -30 to 50°C |
| Length | 4.4 in / 113.5 mm |
| Width | 2.9 in / 75.1 mm |
| Height | 2.6 in / 65.3 mm |
| Weight | 12.3 oz |
