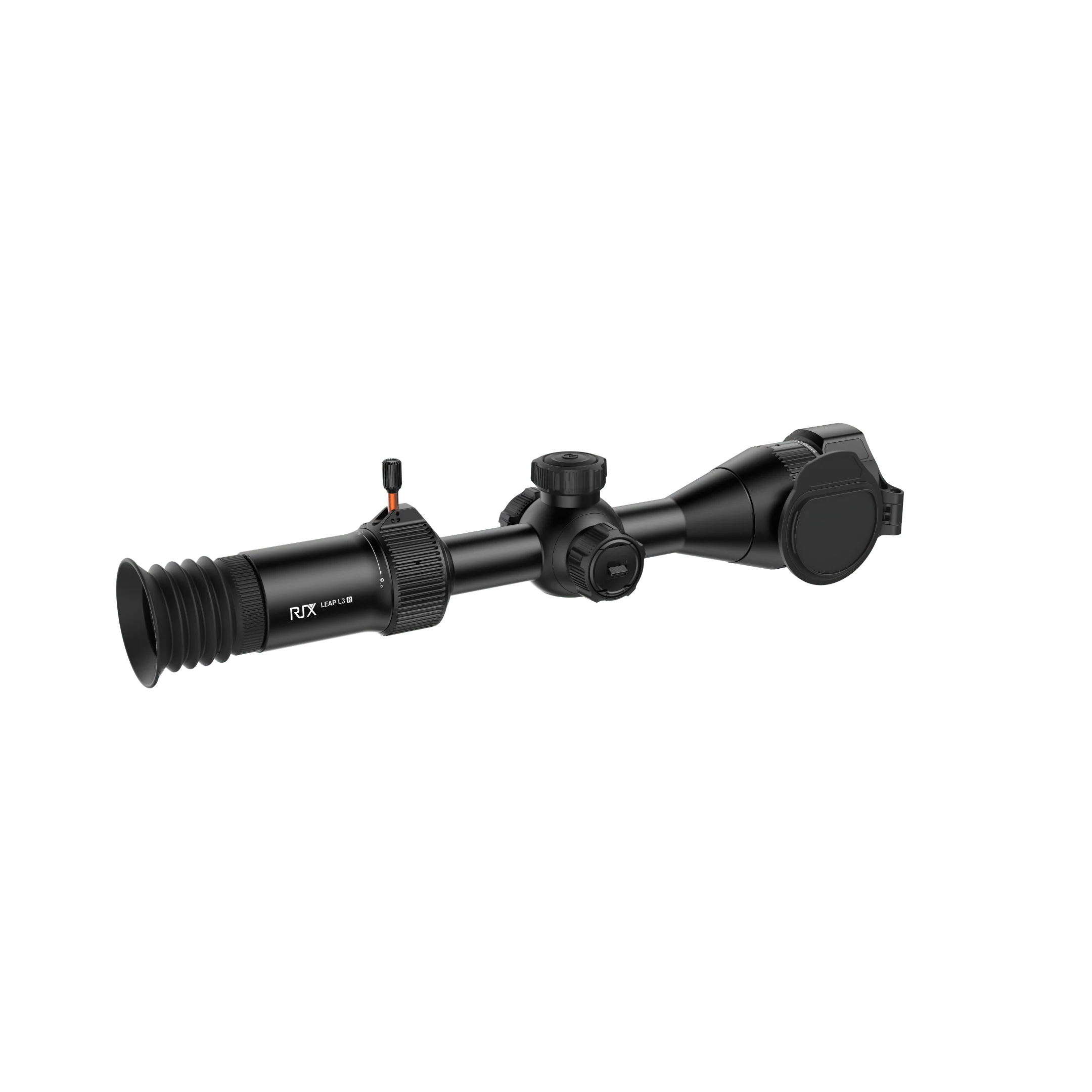

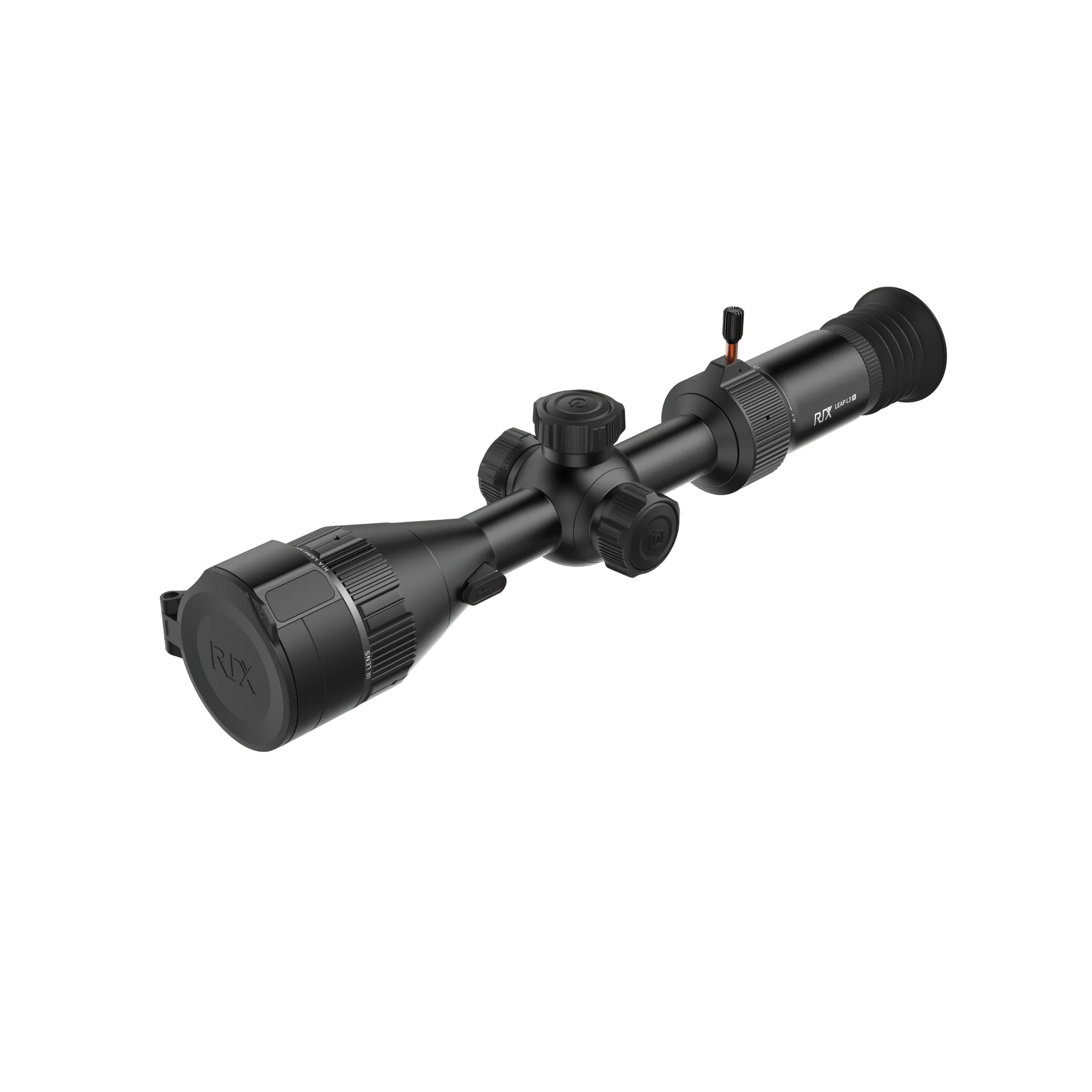

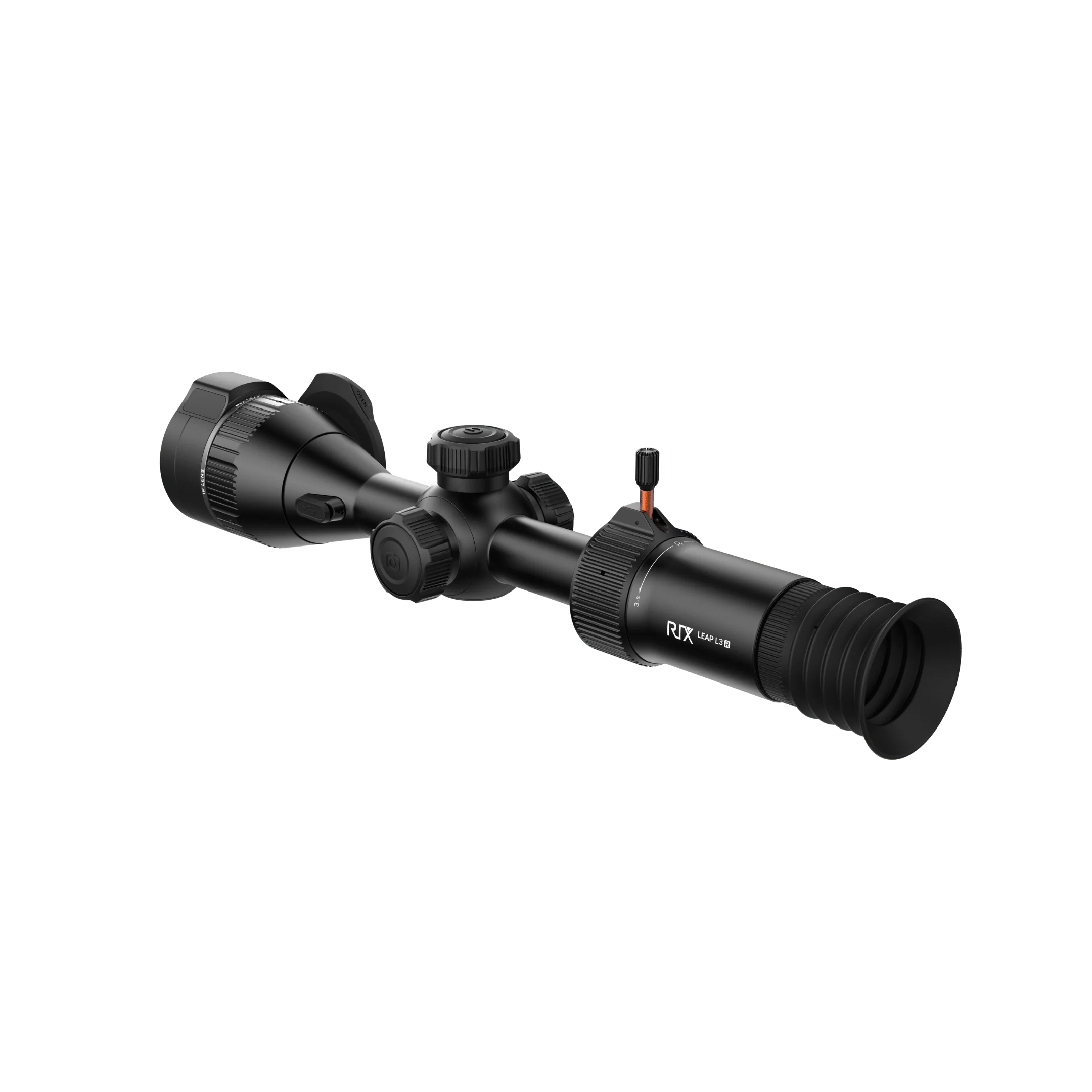

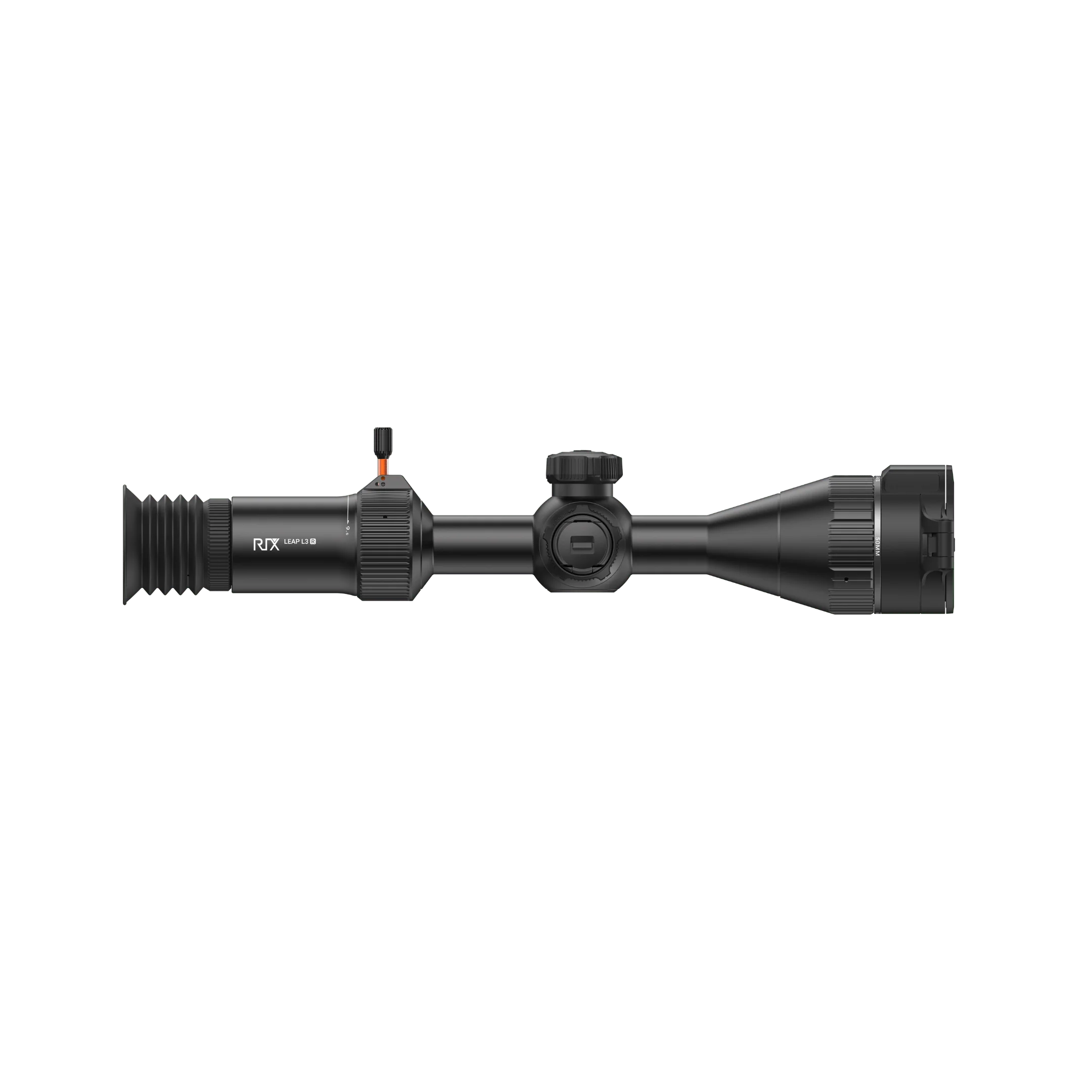

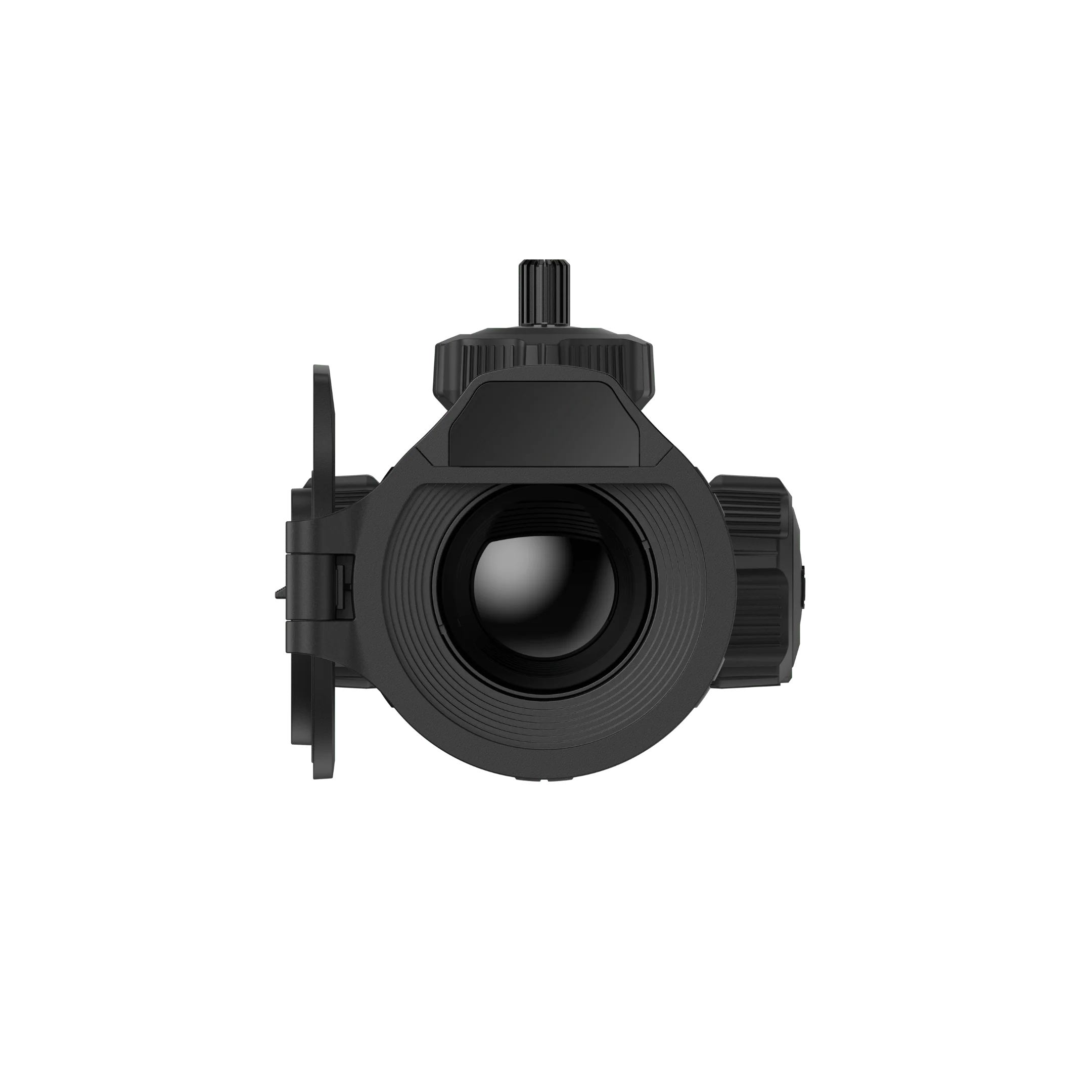

Find your target in darkness or bad weather and enjoy the smooth feel and clear sight picture of optical zoom with the RIX LEAP L3R 3.2-9.6x Thermal Imaging Riflescope with Laser Rangefinder. The scope measures the distance to your target and provides crucial ballistic data for an effective shot. It takes photos and records video, including recoil-activated recording that captures the moments before and after your shot. Zeroing is electronic, and the "turrets" are actually switches and dials that control other functions, including photo/video, settings, and more.
The large zoom ring with throw lever makes it easy to magnify your target, and you have digital zoom and picture-in-picture options as well. There are eight reticles and six color palette options. You can save photos and video to the 32GB of onboard memory, transfer to your computer using a cable, and stream via Wi-Fi to your phone running the LEAP app.
Specifications
| Category | Specification |
|---|---|
| Model | L3R |
Sensor Specifications
| Feature | Details |
|---|---|
| Sensor Type | VOx Uncooled |
| Resolution | 384 × 288 |
| Pixel Pitch | 12 μm |
| NETD | < 20 mK |
| Frame Rate | 50 Hz |
Optical Specifications
| Feature | Details |
|---|---|
| Objective Lens | 35 mm |
| Optical Zoom | 3.2x to 9.6x |
| Field of View (H × V) | 7.5 × 4.2° |
| Digital Zoom | 1x to 4x |
| Eye Relief | 50 mm |
| Diopter Adjustment | -5 to +5 |
| Detection Range | 1800 m / 1969 yd |
Display
| Feature | Details |
|---|---|
| Display Type | AMOLED |
| Display Resolution | 1920 × 1080 |
Laser Rangefinder
| Feature | Details |
|---|---|
| Measurement Range | 1200 m / 1312 yd |
| Measurement Accuracy | ±1 m / ±1.09 yd |
Video Recorder
| Feature | Details |
|---|---|
| Video Resolution | 1280 × 720 |
| Photo Resolution | 1280 × 720 |
| File Format | .mp4 / .jpg |
| Built-in Memory | 32 GB |
Physical Specifications
| Feature | Details |
|---|---|
| Protection Rating | IP67 |
| Operating Temperature | -4°F to +122°F |
| Weight | 2.4 lb |
| Dimensions | 14.2 × 3.5 × 3 in |
Power and Connectivity
| Feature | Details |
|---|---|
| Battery Type | 18650 |
| Operating Time | 4 hours at 72°F |
| External Power | 5V USB Type-C |
Mounting and Recoil
| Feature | Details |
|---|---|
| Max Recoil Rating | 1000 g / 6000 Joules |
| Compatible Mounts | 30 mm rings |
