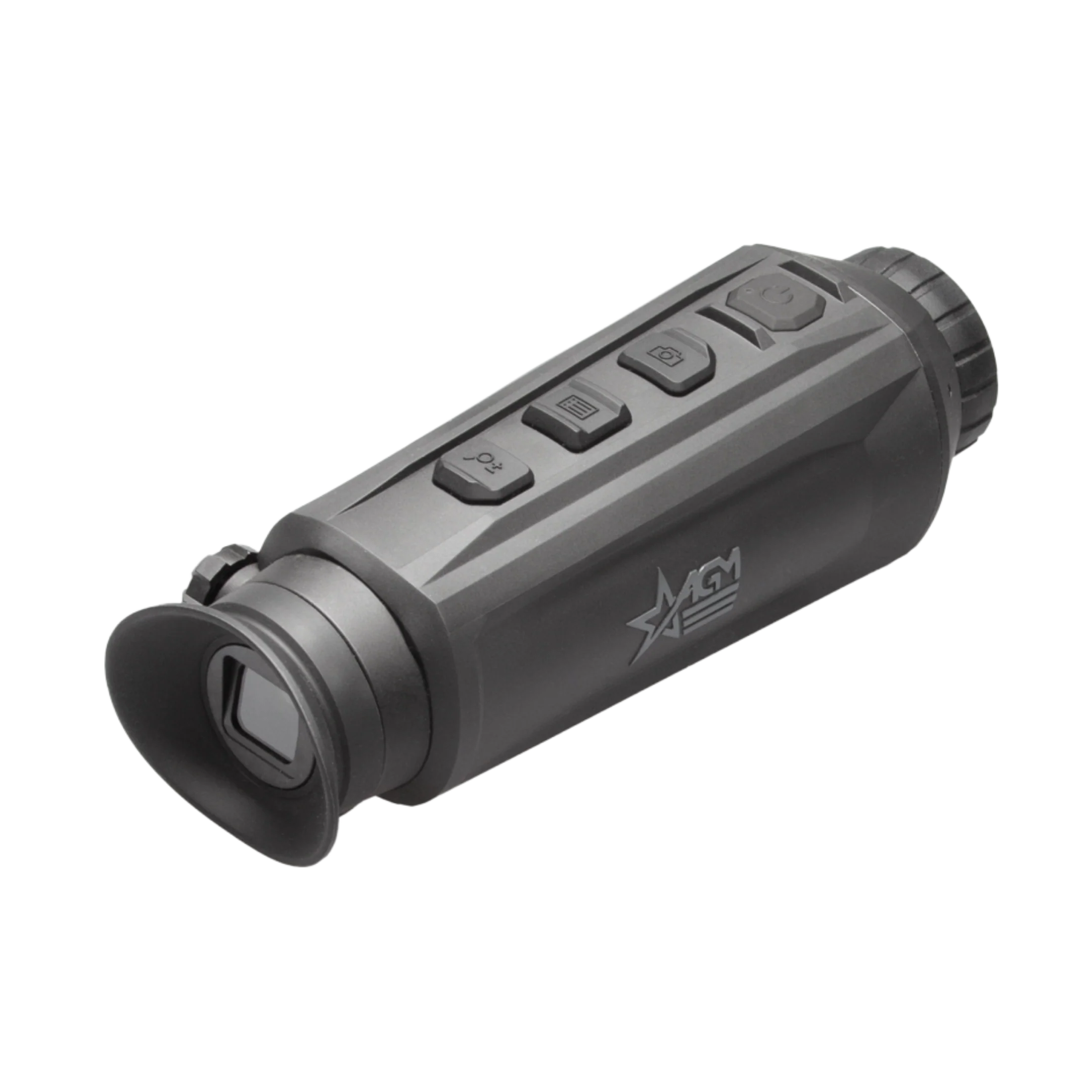

AGM TaipanV2 25-384 Thermal Imaging Monocular

Product image 1
1 / 15
+10

AGM TaipanV2 25-384 Thermal Imaging Monocular

Key Features

  • 384 x 288 Sub-20mK Thermal Sensor
  • 25mm f/1.0 Lens System
  • 2.5x Magnification, 1-8 Digital Zoom

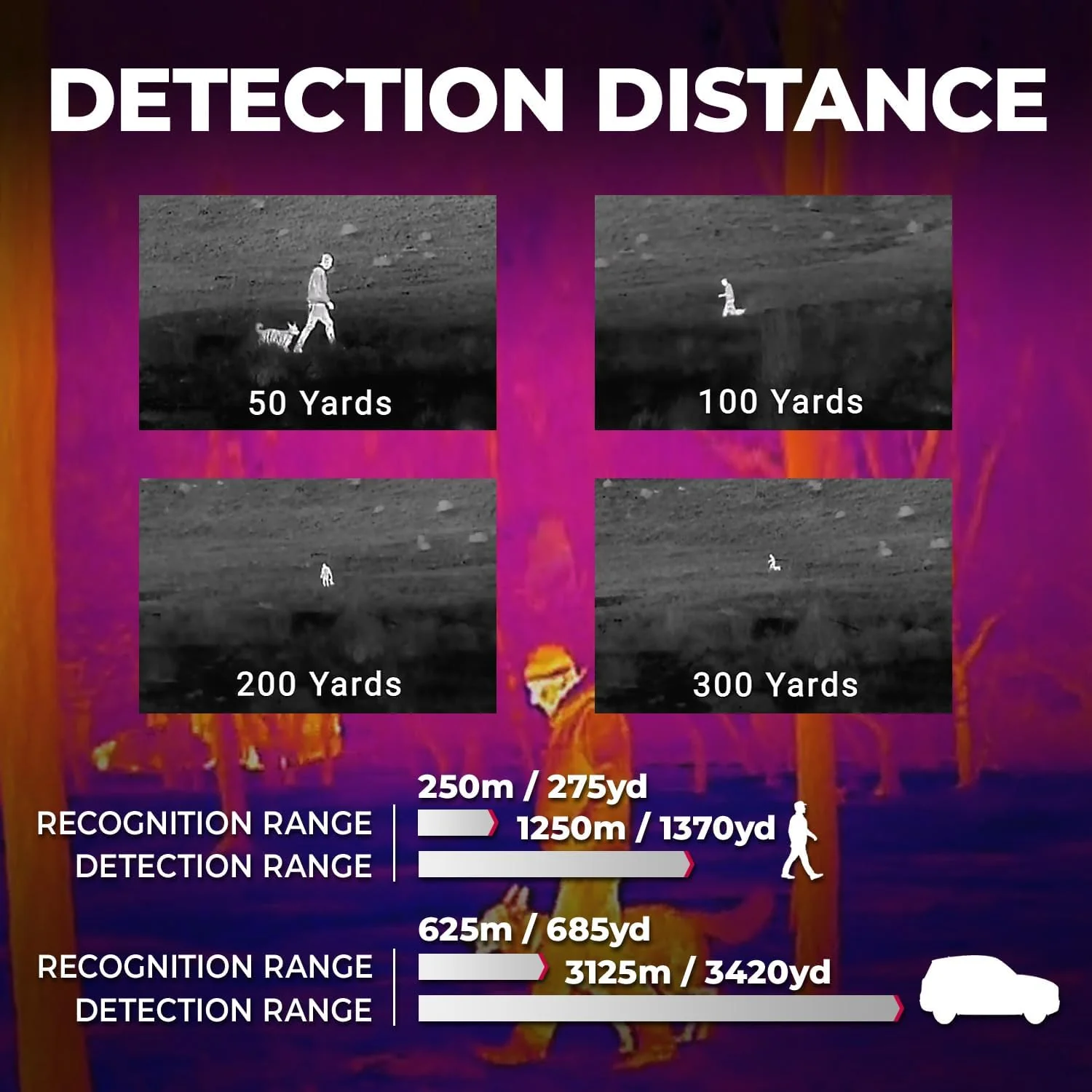

  • 1312 Yard Detection Range
  • 10.5 x 7.9° Field of View
  • Black/White/Red Hot & Fusion Palettes
  • 1024×768 OLED Display
  • Wi-Fi Streaming to Networked Devices
  • Removable 18650 Rechargeable Battery
  • IP67 Rated, Dust-Tight & Submersible

Description

The AGM TaipanV2 Thermal Monocular series is the newest addition to what is already the most extensive thermal product assortment in the world! The TaipanV2 series boasts multiple germanium lens sizes which are paired with an industry-leading 384 resolution 12 micron, sub-20mK thermal detector.
The TaipanV2s also bring many new advancements to the product family which users have been clamoring for in the original Taipan monoculars. These primary improvements include moving from a non-removable rechargeable internal battery to a single removable rechargeable 18650, a new sub-20mK thermal sensor and a new 90 degree tilt sensor which powers off the display to save battery life!


The TaipanV2 also comes packed with numerous software improvements, and many features that have become commonplace within the AGM thermal product assortment: F1.0 aperture optics, 50Hz refresh rate, 16GB of built-in memory, Wi-Fi compatibility to pair with the AGM Connect App, an IP67 waterproof rating, USB Type-C port for external power capabilities and 4 color palettes. They also utilize a wider rubber eyepiece to make viewing the 1024 OLED display extremely comfortable in the field when viewing for long periods of time in a single session.

The TaipanV2s are built for well-rounded use and would work great for hunting, farming/herd protection, law enforcement, search & rescue, boating, camping and other general outdoors activities. And of course, all TaipanV2 models will come with AGM’s 5 year transferable warranty.

Imager & Optical System

  • 384 x 288 vanadium oxide thermal sensor
  • Under 20mK noise equivalent temperature difference for clean image
  • 8- to 14-micron spectral response
  • 25mm f/1.0 lens, 2.5x magnification, 1x/2x/4x/8x digital zoom

Video Performance & Display

  • 50 Hz refresh rate for smooth video capture
  • 1024×768 OLED display
  • Black hot, white hot, red hot, fusion palettes
  • 16GB onboard memory

Use and Handling

  • Removable, rechargeable 18650 li-ion battery
  • USB-C recharging
  • 90° tilt sensor powers off display to save battery life
  • IP67 rated, dust-tight, submersible to 3.3'
  • Pairs via built-in Wi-Fi hotspot with devices running the AGM Connect App
  • Wide rubber eyepiece for viewing comfort

Specifications

Configuration
Monocular
Sensor Size
384 x 288
Display
1024 x 768
Magnification
2.5x
1 to 8x
Inputs/Outputs
1x USB-C (5 VDC at 2 A)
Battery
Rechargeable Lithium-Ion

General

Configuration
Monocular
Sensor Size
384 x 288
Display
1024 x 768
Refresh Rate
50 Hz
Pixel Size
12 µm
Spectral Range
8 to 14 µm
Thermal Sensitivity
<20 mK at f/1.0, 77°F / 25°C
Detection Range
1312 yd / 1199.7 m

Performance

Magnification
2.5x
1 to 8x
Lens System
25 mm, f/1.0
Angle of View
17.5 x 13.1°
Diopter Adjustment
-5 to +3

Camera

Storage
16 GB via Built-In Memory
Connectivity
Wireless
Wi-Fi
Inputs/Outputs
1x USB-C (5 VDC at 2 A)

Physical

Battery
Rechargeable Lithium-Ion
Operating Conditions
-22 to 131°F / -30 to 55°C
Environmental Resistance
Dust/Water-Resistant (IP67)
Dimensions
6.2 x 2.4 x 2.2" / 15.7 x 6.1 x 5.6 cm
Weight
11 oz / 313 g (with Batteries)


Package Includes

  • Battery Charger
  • USB Cable
  • Power Adapter (US and EU plugs included)
  • 18650 Rechargeable Battery
  • Lens Cloth
  • Wrist Strap
  • User Manual
  • Protective Bag


Downloads

Data Sheet
User Manual
