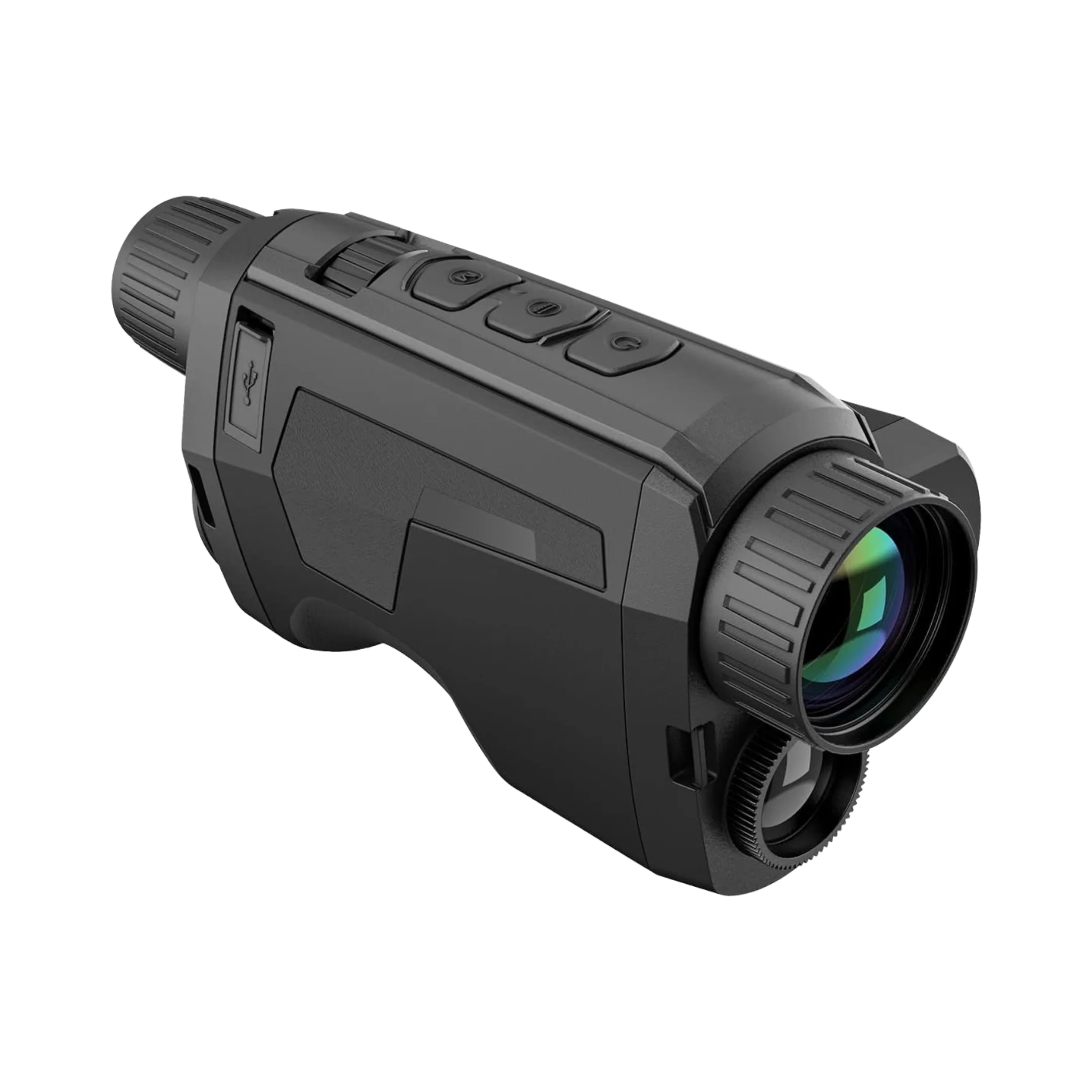

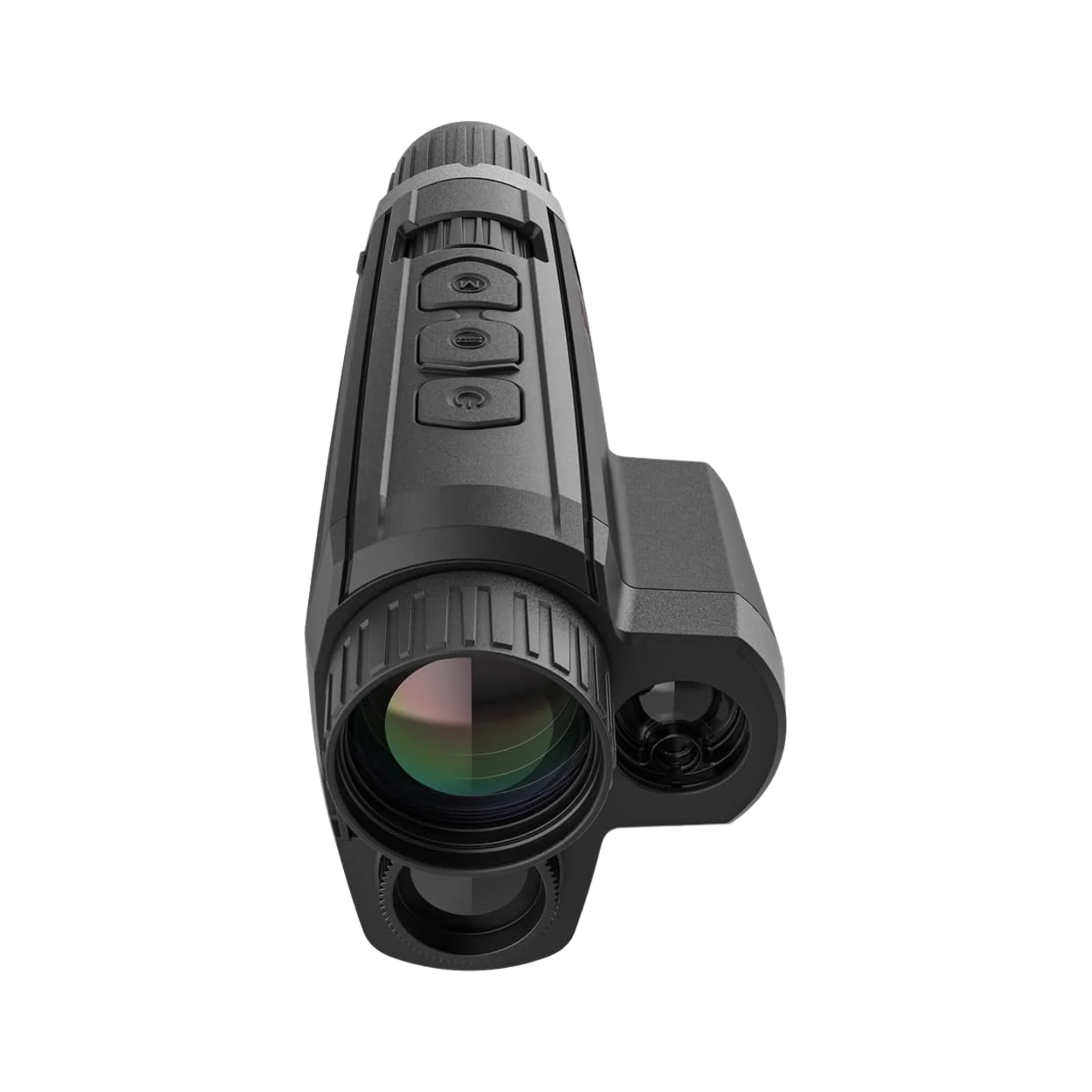

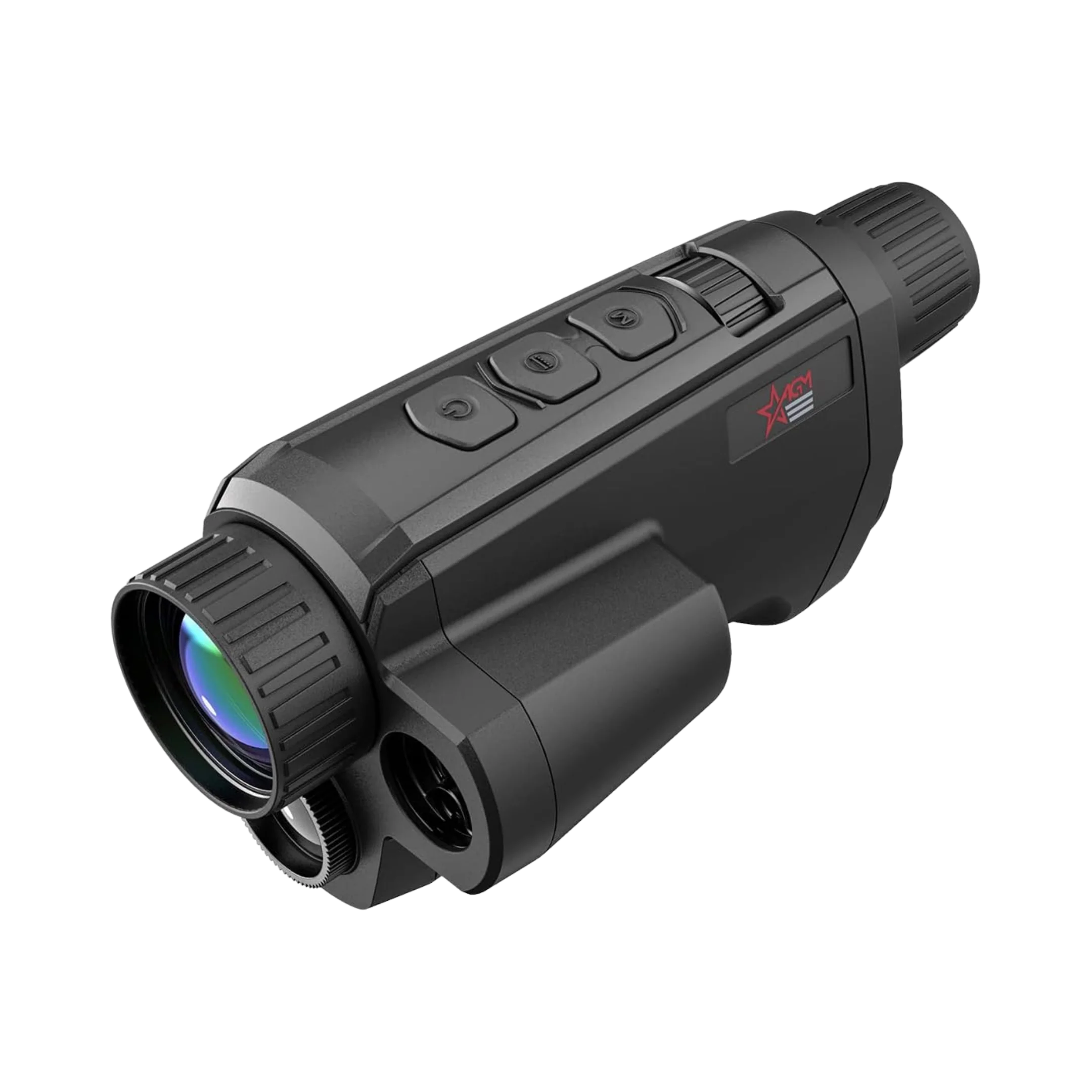

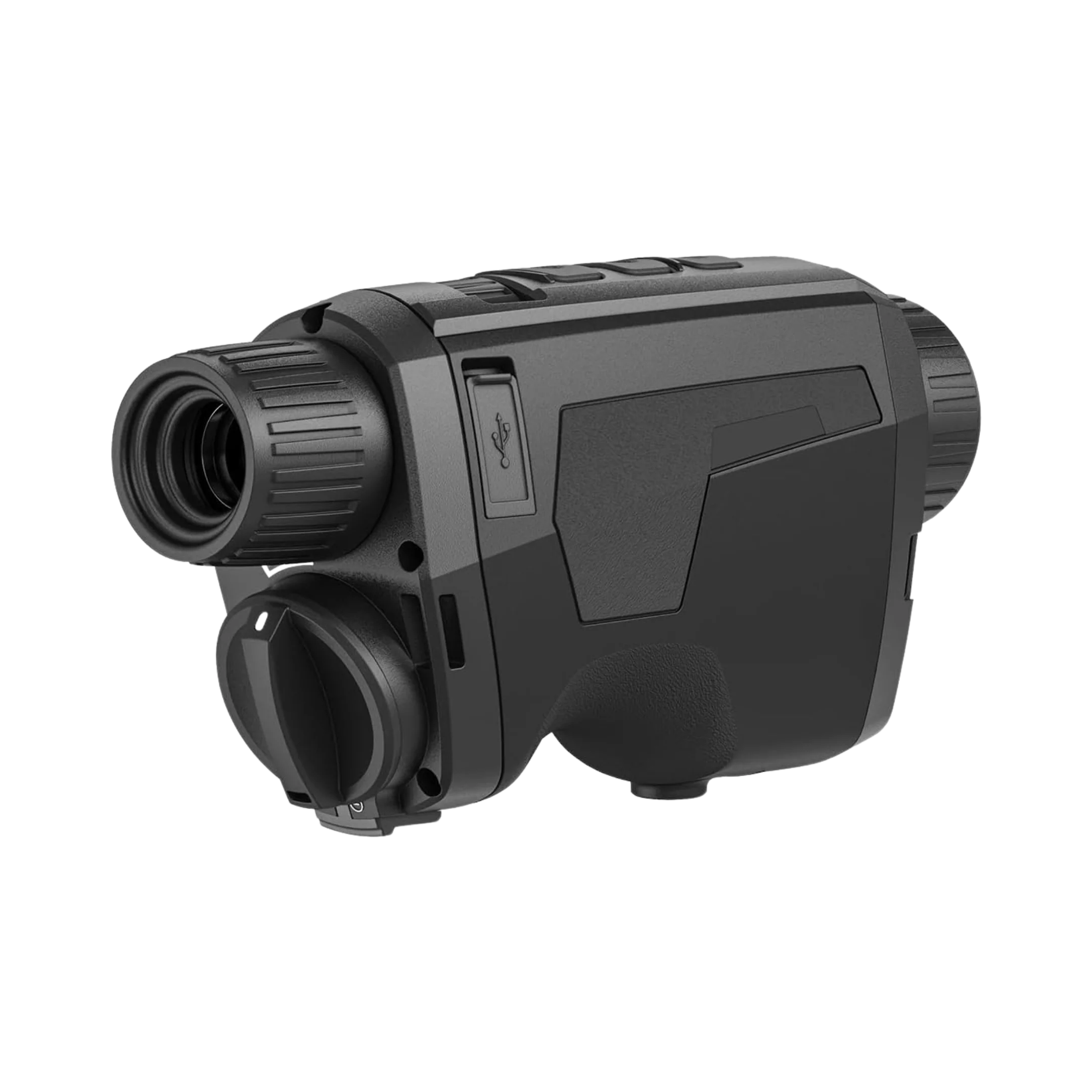

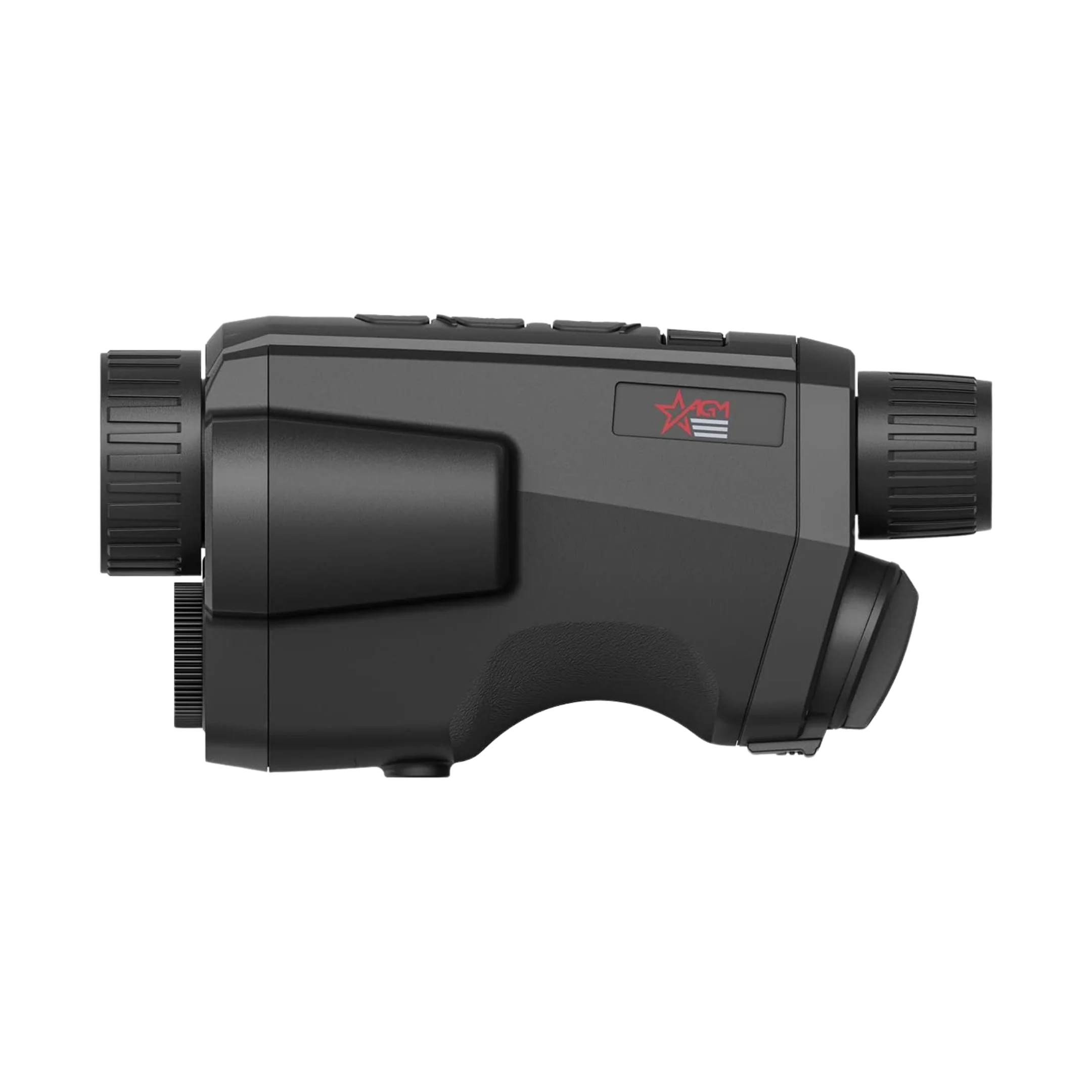

AGM Global Vision Fuzion LRF TM35 640 Thermal Monocular
- High-Sensitivity Thermal Detection: 12 μm, 35 mK NETD thermal detector provides sharp and clear heat imaging for precise tracking.
- Smooth, Real-Time Imaging: 1920×1080 resolution with 50Hz imaging delivers fluid, real-time visuals.
- Versatile Zoom Options: Offers 1x, 2x, 4x, and 8x digital zoom with 2x – 16x magnification for detailed viewing.
- Built-In Video and Connectivity: 16 GB internal storage for video recording and snapshots, plus Wi-Fi hotspot support.
- Long-Range Laser Rangefinder: Eye-safe laser rangefinder accurately measures distances up to 1750 meters.
The AGM Global Vision Fuzion LRF TM35-640 Thermal Monocular is designed for hunters and outdoor adventurers seeking advanced thermal imaging capabilities. Equipped with a high-sensitivity 12 μm, 35 mK NETD thermal detector, this monocular captures sharp, detailed heat images, even in low-light conditions. Its 1920×1080 resolution and 50Hz refresh rate deliver smooth, real-time imaging, while digital zoom options (1x, 2x, 4x, 8x) and magnification up to 16x bring you closer to your target. With built-in video recording, 16 GB storage, Wi-Fi hotspot, and a powerful, eye-safe laser rangefinder with 1750-meter range, the Fuzion LRF TM35-640 is built to handle diverse outdoor environments. Durable, waterproof, and backed by a 5-year warranty, this monocular ensures reliable performance on every adventure.
Specifications
| Palettes |
Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
|
| Working Temperature |
-20°C to 55°C (-4°F to 131°F)
|
| Dimension (LxWxH) |
168 × 87 × 74 mm (6.6 × 3.4 × 2.9 in)
|
| Distance Measurement |
Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)
|
| Scene Mode |
Jungle, Recognition
|
| Hotspot | Yes |
| Observation Distance | 1750m/yd |
| Detector type |
12 μm VOx Uncooled Focal Plane Arrays
|
| Response Waveband |
8 μm to 14 μm
|
| Optical Image Sensor |
1/2” Progressive Scan CMOS, 1920×1080@25fps
|
| FFC (Flat Field Correction) |
Auto, Manual, External Correction
|
| Highest Temperature Spot Tracking | Yes |
| Standby Mode | Yes |
| Refresh rate | 50 Hz |
| Aperture | F1.0 |
| Resolution | 640 × 512 |
| Laser Wavelength | 905 nm |
| Optical magnification | 2x – 16x |
| Lens (focal length) |
Thermal Lens Focal Length - 25mm Optical Module Lens Focal Length - 22mm
|
| Power |
5 VDC/2 A, USB Type-C interface Supports external power supply
|
| Field of view (H × X) | 12.5° × 10° |
| Digital zoom |
1x, 2x, 4x, 8x
|
| Monitor |
1024x768, 0.39 inch, OLED, 50Hz
|
| Storage |
Built-in 16 GB EMMC
|
| Record Video |
On-board video recording
|
| Capture Snapshot | Yes |
| Battery Type |
One 18650 rechargeable battery (removable)
|
| CVBS Output |
Yes (via USB)
|
| Battery Operating Time |
Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
|
| Battery Capacity Display | Yes |
| Weight |
520g (1.15 Ib)
|
| Protection Level |
IP67 (Waterproof)
|
Package Includes
- Rubber eyepiece
- 18650 Rechargeable Battery 2x
- USB Cable
- Battery Charger
- Power Adapter
- Lens Cloth
- User Manual
